| Kjerne | |
|---|---|
| Navn | Navi 44 |
| Fabrikant | TSMC |
| Prosessnode | 4 nm |
| Transistorer | 29700 million |
| Brikkelstørrelse | 199 mm² |
| Tetthet | 149.2 /mm² |
| GPU-kjernekonfigurasjon | |
|---|---|
| Kjerner | 2048 |
| TMU-er | 128 |
| ROP-er | 64 |
| RT-kjerner | 32 |
| Minne | |
|---|---|
| Teknologi | GDDR6 |
| Størrelse | 16 GB |
| Buss | 128 bit |
| Båndbredde | 168.064 GB/s |
| Hastighet | 10.504 Gbps |
| Klokkehastigheter | |
|---|---|
| Grunnklokke | 1700 MHz |
| Spillklokke | 2780 MHz 2530 MHz |
| Boost-klokke | 3320 MHz 3130 MHz |
| Minneklokke | 2518 MHz |
| Strøm | |
|---|---|
| 8-pin | 1 |
| TDP | 160 w |
| Anbefalt strømforsyning | 550 w 500 w |

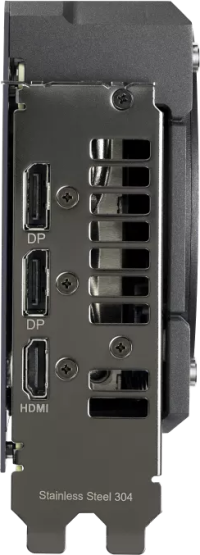

| Skjermutgang | |
|---|---|
| DisplayPort | 2 2.1a |
| HDMI | 1 2.1b |
| HDCP | 2.3 |
| Dimensjoner | |
|---|---|
| Spor | 2.5 |
| Lengde | 304 mm |
| Høyde | 126 mm |
| Bredde | 50 mm |
| GPU▲ | Boost-klokke▲ | Spor▲ | Lengde▲ | Høyde▲ | Bredde▲ |
|---|---|---|---|---|---|
| 3230 MHz +3.2% | 2.5 | 202 mm | 120 mm | 49 mm | |
| 3310 MHz +5.8% | 2.5 | 304 mm | 126 mm | 50 mm | |
| 3230 MHz +3.2% | 2.5 | 202 mm | 120 mm | 49 mm | |
| 3320 MHz +6.1% | 2.5 | 304 mm | 126 mm | 50 mm | |
| 3320 MHz +6.1% | 2.6 | 298 mm | 131 mm | 51 mm | |
| 3230 MHz +3.2% | 2.1 | 249 mm | 132 mm | 41 mm | |
| 3290 MHz +5.1% | 2.1 | 249 mm | 132 mm | 41 mm | |
| 3230 MHz +3.2% | 2 | 281 mm | 118 mm | 40 mm | |
| 3320 MHz +6.1% | 2 | 281 mm | 118 mm | 40 mm | |
| 3320 MHz +6.1% | 2 | 281 mm | 118 mm | 40 mm | |
| 3230 MHz +3.2% | 2 | 200 mm | 100 mm | 39 mm | |
| 3310 MHz +5.8% | 2 | 310 mm | 100 mm | 40 mm | |
| 3310 MHz +5.8% | 2 | 310 mm | 100 mm | 40 mm | |
| 3320 MHz +6.1% | 2.7 | 320 mm | 127 mm | 53 mm | |
| 3320 MHz +6.1% | 2.7 | 320 mm | 127 mm | 53 mm | |
| 3320 MHz +6.1% | 2.7 | 320 mm | 127 mm | 53 mm | |
| 3320 MHz +6.1% | 2.8 | 300 mm | 131 mm | 55 mm | |
| 3290 MHz +5.1% | 2.3 | 240 mm | 124 mm | 46.1 mm | |
| 3290 MHz +5.1% | 2.3 | 240 mm | 124 mm | 46.1 mm | |
| 3320 MHz +6.1% | 2.5 | 290 mm | 124 mm | 49 mm | |
| 3320 MHz +6.1% | 2.5 | 290 mm | 124 mm | 49 mm | |
| 3320 MHz +6.1% | 2.5 | 290 mm | 124 mm | 49 mm | |
| 3320 MHz +6.1% | 2.4 | 270 mm | 124 mm | 48 mm | |
| 3320 MHz +6.1% | 2.4 | 270 mm | 124 mm | 48 mm |
