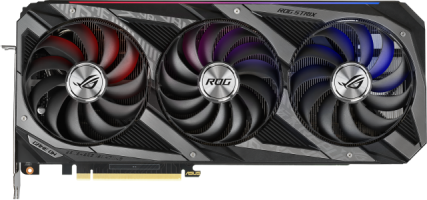

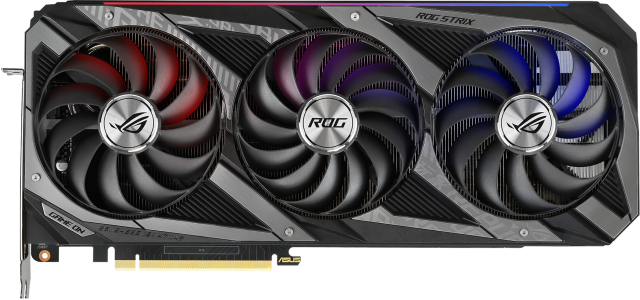

Asus ROG Strix GeForce RTX 3060 Ti V2 - Front

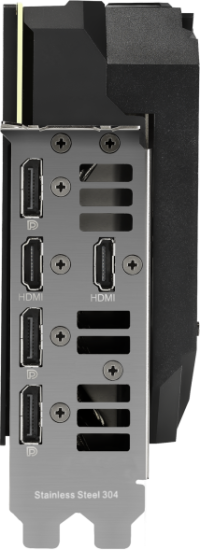

Asus ROG Strix GeForce RTX 3060 Ti V2 - Front Asus ROG Strix GeForce RTX 3060 Ti V2 - Rear Asus ROG Strix GeForce RTX 3060 Ti V2 - Side Asus ROG Strix GeForce RTX 3060 Ti V2 - Outputs
Asus ROG Strix GeForce RTX 3060 Ti V2
ROG-STRIX-RTX3060TI-8G-V2-GAMING
ROG Strix GeForce RTX™ 3060 Ti V2 8GB GDDR6 with LHR offers a buffed-up design with chart-topping thermal performance. NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency. 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance. 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities. This GeForce RTX 3060 Ti graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.). Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence. 2.9-slot design expands cooling surface area compared to last gen for more thermal headroom than ever before. Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages. GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Informasjon
PlattformConsumer
ArkitekturAmpere
GenerasjonGeForce RTX 30
Forrige generasjonGeForce RTX 20
Neste generasjonGeForce RTX 40
GrensesnittPCIe 4.0 x16
Maks temperatur93 C
Kjerne
NavnGA104
FabrikantSamsung
Prosessnode8 nm
Transistorer17400 million
Brikkelstørrelse392 mm²
Tetthet44.4 /mm²
GPU-kjernekonfigurasjon
Kjerner4864
TMU-er152
ROP-er80
SM-er38
Tensor-kjerner152
Minne
TeknologiGDDR6
Størrelse8 GB
Buss256 bit
Båndbredde448 GB/s
Hastighet14 Gbps
Klokkehastigheter
Grunnklokke1410 MHz
Boost-klokke1665 MHz
Minneklokke1750 MHz
Strøm
8-pin2
TDP200 w
Anbefalt strømforsyning750 w 600 w
Skjermutgang
DisplayPort3 1.4a
HDMI2 2.1
HDCP2.3
Oppløsning7680 x 4320
Skjermer4
Dimensjoner
Spor2.9
Lengde318.5 mm
Høyde140.1 mm
Bredde57.8 mm

Models
GPUBoost-klokkeSporLengdeHøydeBredde
1665 MHz2247 mm120 mm40 mm
1860 MHz +11.7%2.9318.5 mm140.1 mm57.8 mm
1665 MHz2.9318.5 mm140.1 mm57.8 mm
1665 MHz2.9318.5 mm140.1 mm57.8 mm
1860 MHz +11.7%2.9318.5 mm140.1 mm57.8 mm
1695 MHz +1.8%2222.1 mm115.6 mm38.2 mm
1800 MHz +8.1%2.7294 mm112 mm mm
