Name: Gigabyte GeForce RTX 5060 Ti AERO OC
Brand: Gigabyte
SKU: GV-N506TAERO OC-16GD

Gigabyte GeForce RTX 5060 Ti AERO OC

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

GPUs > NVIDIA RTX 5060 Ti 16GB > Gigabyte GeForce RTX 5060 Ti AERO OC

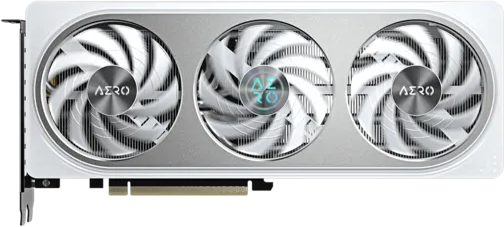

Gigabyte GeForce RTX 5060 Ti AERO OC - Front

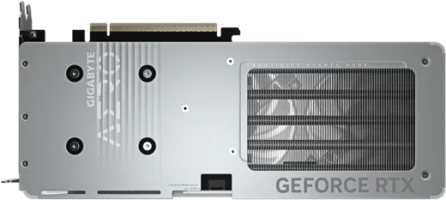

Gigabyte GeForce RTX 5060 Ti AERO OC - Rear

Gigabyte GeForce RTX 5060 Ti AERO OC - Side

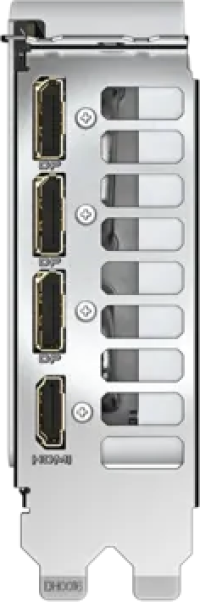

Gigabyte GeForce RTX 5060 Ti AERO OC - Outputs

Gigabyte GeForce RTX 5060 Ti AERO OC
GV-N506TAERO OC-16GD
Powered by the NVIDIA Blackwell architecture and DLSS 4
 Powered by GeForce RTX™ 5060 Ti
 Integrated with 16GB GDDR7 128bit memory interface
 WINDFORCE cooling system
 Hawk fan
 Server-grade Thermal conductive gel
 RGB Lighting
 Dual BIOS (Performance / Silent)
 Reinforced structure

Informasjon
PlattformConsumer
ArkitekturBlackwell 2nd-gen
GenerasjonGeForce RTX 50
Forrige generasjonGeForce RTX 40
GB206
GrensesnittPCIe 5.0 x8
Kjerne
NavnGB206
FabrikantTSMC
Prosessnode5 nm
Transistorer21900 million
Brikkelstørrelse181 mm²
Tetthet121.0 /mm²
GPU-kjernekonfigurasjon
Kjerner4608
TMU-er144
ROP-er48
SM-er36
RT-kjerner36
Minne
TeknologiGDDR7
Størrelse16 GB
Buss128 bit
Båndbredde448 GB/s
Hastighet28 Gbps

Klokkehastigheter
Grunnklokke2407 MHz
Boost-klokke2647 MHz 2572 MHz
Minneklokke1750 MHz
Strøm
8-pin1
TDP180 w
Anbefalt strømforsyning650 w 600 w
Skjermutgang
DisplayPort3 2.1b
HDMI1 2.1b
HDCP2.3
Dimensjoner
Spor2
Lengde281 mm
Høyde117 mm
Bredde40 mm

Models

GPU▲	Boost-klokke▲	Spor▲	Lengde▲	Høyde▲	Bredde▲
Zotac GeForce RTX 5060 Ti AMP ZT-B50620F-10M	2632 MHz +2.3%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Ti Twin Edge OC White Edition ZT-B50620Q-10M	2602 MHz +1.2%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Ti Twin Edge OC ZT-B50620H-10M	2602 MHz +1.2%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Ti Twin Edge ZT-B50620E-10M	2572 MHz	2.1	220.5 mm	120.25 mm	41.6 mm
Gigabyte AORUS GeForce RTX 5060 Ti ELITE GV-N506TAORUS E-16GD	2722 MHz +5.8%	2.1	329 mm	128 mm	41 mm
Gigabyte GeForce RTX 5060 Ti GAMING OC GV-N506TGAMING OC-16GD	2647 MHz +2.9%	2	281 mm	119 mm	40 mm
Gigabyte GeForce RTX 5060 Ti GAMING GV-N506TGAMING-16GD	2572 MHz	2	281 mm	119 mm	40 mm
Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE GV-N506TEAGLEOC ICE-16GD	2617 MHz +1.7%	2	215 mm	122 mm	40 mm
Gigabyte GeForce RTX 5060 Ti EAGLE MAX OC GV-N506TEAGLEMAX OC-16GD	2617 MHz +1.7%	2	281 mm	115 mm	40 mm
Gigabyte GeForce RTX 5060 Ti EAGLE OC GV-N506TEAGLE OC-16GD	2617 MHz +1.7%	2	215 mm	122 mm	40 mm
Gigabyte GeForce RTX 5060 Ti AERO OC GV-N506TAERO OC-16GD	2647 MHz +2.9%	2	281 mm	117 mm	40 mm
Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX OC GV-N506TWF2MAX OC-16GD	2587 MHz +0.6%	2	208 mm	120 mm	40 mm
Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX GV-N506TWF2MAX-16GD	2572 MHz	2	208 mm	120 mm	40 mm
Gigabyte GeForce RTX 5060 Ti WINDFORCE OC GV-N506TWF2OC-16GD	2587 MHz +0.6%	2	208 mm	120 mm	40 mm
Gigabyte GeForce RTX 5060 Ti WINDFORCE GV-N506TWF2-16GD	2572 MHz	2	208 mm	120 mm	40 mm
Asus Dual GeForce RTX 5060 Ti EVO DUAL-RTX5060TI-16G-EVO	2572 MHz	2.1	225 mm	120 mm	42 mm
Asus Dual GeForce RTX 5060 Ti EVO OC Edition DUAL-RTX5060TI-O16G-EVO	2602 MHz +1.2%	2.1	225 mm	120 mm	42 mm
Asus Dual GeForce RTX 5060 Ti White OC Edition DUAL-RTX5060TI-O16G-WHITE	2602 MHz +1.2%	2.5	229 mm	120 mm	50 mm
Asus Dual GeForce RTX 5060 Ti White Edition DUAL-RTX5060TI-16G-WHITE	2572 MHz	2.5	229 mm	120 mm	50 mm
Asus TUF Gaming GeForce RTX 5060 Ti TUF-RTX5060TI-16G-GAMING	2572 MHz	3.1	302 mm	133.5 mm	62 mm
Asus Dual GeForce RTX 5060 Ti DUAL-RTX5060TI-16G	2572 MHz	2.5	229 mm	120 mm	50 mm
Asus PRIME GeForce RTX 5060 Ti PRIME-RTX5060TI-16G	2572 MHz	2.5	304 mm	120 mm	50 mm
Asus PRIME GeForce RTX 5060 Ti OC Edition PRIME-RTX5060TI-O16G	2617 MHz +1.7%	2.5	304 mm	120 mm	50 mm
Asus Dual GeForce RTX 5060 Ti OC Edition DUAL-RTX5060TI-O16G	2602 MHz +1.2%	2.5	229 mm	120 mm	50 mm
Asus TUF Gaming GeForce RTX 5060 Ti OC Edition TUF-RTX5060TI-O16G-GAMING	2662 MHz +3.5%	3.1	302 mm	133.5 mm	62 mm
MSI GeForce RTX 5060 Ti CYCLONE G506T-16C	2572 MHz	2.1	161 mm	125 mm	42 mm
MSI GeForce RTX 5060 Ti CYCLONE OC G506T-16CC	2602 MHz +1.2%	2.1	161 mm	125 mm	42 mm
MSI GeForce RTX 5060 Ti VENTUS 2X WHITE PLUS G506T16V2WP	2572 MHz	2.1	227 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti VENTUS 2X OC WHITE PLUS G506T16V2CWP	2602 MHz +1.2%	2.1	227 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti SHADOW 2X PLUS G506T-16S2P	2572 MHz	2.1	226 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti SHADOW 2X OC PLUS G506T-16S2CP	2602 MHz +1.2%	2.1	226 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti GAMING TRIO G506T-16GT	2572 MHz	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 Ti GAMING TRIO OC G506T-16GTC	2647 MHz +2.9%	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 Ti GAMING TRIO WHITE G506T-16GTW	2572 MHz	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 Ti GAMING TRIO OC WHITE G506T-16GTCW	2647 MHz +2.9%	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 Ti GAMING G506T-16G	2572 MHz	2.6	247 mm	135 mm	51 mm
MSI GeForce RTX 5060 Ti GAMING OC G506T-16GC	2647 MHz +2.9%	2.6	247 mm	135 mm	51 mm
MSI GeForce RTX 5060 Ti INSPIRE 2X G506T-16I2	2572 MHz	2.5	204 mm	117 mm	50 mm
MSI GeForce RTX 5060 Ti INSPIRE 2X OC G506T-16I2C	2617 MHz +1.7%	2.5	204 mm	117 mm	50 mm
MSI GeForce RTX 5060 Ti VENTUS 3X G506T-16V3	2572 MHz	2.2	304 mm	121 mm	44 mm
MSI GeForce RTX 5060 Ti VENTUS 3X OC G506T-16V3C	2602 MHz +1.2%	2.2	304 mm	121 mm	44 mm
MSI GeForce RTX 5060 Ti VENTUS 2X PLUS G506T-16V2P	2572 MHz	2.1	227 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti VENTUS 2X OC PLUS G506T-16V2CP	2602 MHz +1.2%	2.1	227 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti VANGUARD OC G506T-16VGC	2647 MHz +2.9%	3.1	337 mm	140 mm	61 mm
MSI GeForce RTX 5060 Ti VANGUARD SOC G506T-16VGS	2692 MHz +4.7%	3.1	337 mm	140 mm	61 mm
Palit GeForce RTX 5060 Ti White OC NE7506TU19T1-GB2061M	2602 MHz +1.2%	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5060 Ti Infinity 3 NE7506T019T1-GB2061S	2572 MHz	2.1	291.9 mm	116.6 mm	41.3 mm
Palit GeForce RTX 5060 Ti Infinity 3 OC NE7506TS19T1-GB2061S	2662 MHz +3.5%	2.1	291.9 mm	116.6 mm	41.3 mm
PNY GeForce RTX 5060 Ti EPIC-X RGB Overclocked Triple Fan VCG5060T16TFXXPB1-O	2692 MHz +4.7%	2	299 mm	120 mm	40 mm
PNY GeForce RTX 5060 Ti EPIC-X RGB Triple Fan VCG5060T16TFXXPB1	2572 MHz	2	299 mm	120 mm	40 mm
PNY GeForce RTX 5060 Ti Dual Fan VCG5060T16DFXPB1	2572 MHz	2	245.1 mm	120 mm	40 mm
PNY GeForce RTX 5060 Ti Overclocked Dual Fan VCG5060T16DFXPB1-O	2692 MHz +4.7%	2	245.1 mm	120 mm	40 mm
Gainward GeForce RTX 5060 Ti Ghost OC NE7506TU19T1-GB2061B	2602 MHz +1.2%	2	262.1 mm	126.3 mm	40.1 mm
Gainward GeForce RTX 5060 Ti Python III V1 NE7506T019T1-GB2061R	2572 MHz	2.1	291.9 mm	116.5 mm	41.3 mm
Gainward GeForce RTX 5060 Ti Python III NE7506T019T1-GB2061T	2572 MHz	2.1	291.9 mm	116.5 mm	41.3 mm
Gainward GeForce RTX 5060 Ti Python III OC NE7506TS19T1-GB2061T	2662 MHz +3.5%	2.1	291.9 mm	116.5 mm	41.3 mm

Informasjon
Plattform	Consumer
Arkitektur	Blackwell 2nd-gen
Generasjon	GeForce RTX 50
Forrige generasjon	GeForce RTX 40
	GB206
Grensesnitt	PCIe 5.0 x8

Kjerne
Navn	GB206
Fabrikant	TSMC
Prosessnode	5 nm
Transistorer	21900 million
Brikkelstørrelse	181 mm²
Tetthet	121.0 /mm²

Minne
Teknologi	GDDR7
Størrelse	16 GB
Buss	128 bit
Båndbredde	448 GB/s
Hastighet	28 Gbps

Klokkehastigheter
Grunnklokke	2407 MHz
Boost-klokke	2647 MHz 2572 MHz
Minneklokke	1750 MHz

GPU-kjernekonfigurasjon
Kjerner	4608
TMU-er	144
ROP-er	48
SM-er	36
RT-kjerner	36

Strøm
8-pin	1
TDP	180 w
Anbefalt strømforsyning	650 w 600 w

Skjermutgang
DisplayPort	3 2.1b
HDMI	1 2.1b
HDCP	2.3

Dimensjoner
Spor	2
Lengde	281 mm
Høyde	117 mm
Bredde	40 mm
