Name: Gainward GeForce RTX 5060 Ti Python III
Brand: Gainward
SKU: NE7506T019P1-GB2062T

Gainward GeForce RTX 5060 Ti Python III

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

GPUs > NVIDIA RTX 5060 Ti 8GB > Gainward GeForce RTX 5060 Ti Python III

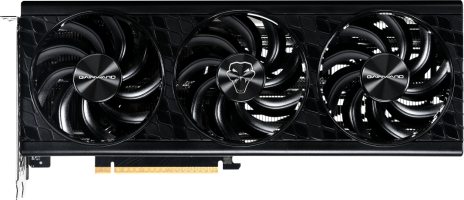

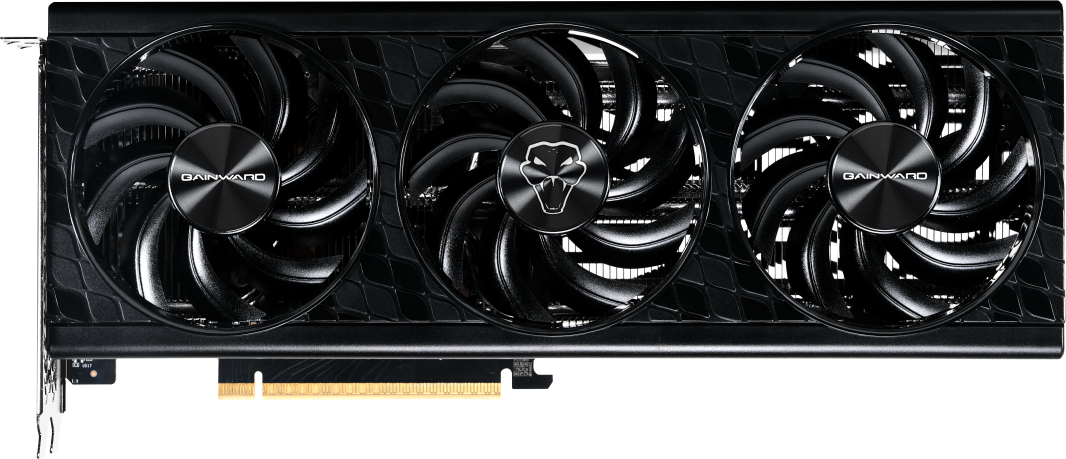

Gainward GeForce RTX 5060 Ti Python III - Front

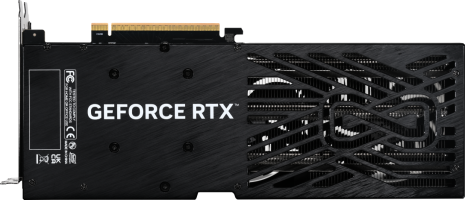

Gainward GeForce RTX 5060 Ti Python III - Rear

Gainward GeForce RTX 5060 Ti Python III - Side

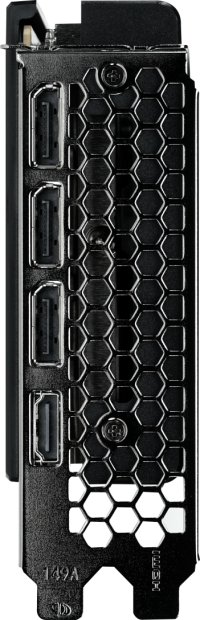

Gainward GeForce RTX 5060 Ti Python III - Outputs

Gainward GeForce RTX 5060 Ti Python III
NE7506T019P1-GB2062T
The Python III series features a triple-fan cooling system specifically designed for optimal performance within the SFF. This ensures your graphics card remains cool and delivers peak performance even during demanding tasks.

Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing AI capabilities to gamers and creators.

Informasjon
PlattformConsumer
ArkitekturBlackwell 2nd-gen
GenerasjonGeForce RTX 50
Forrige generasjonGeForce RTX 40
GrensesnittPCIe 5.0 x8
Maks temperatur87 C
Kjerne
NavnGB206
FabrikantTSMC
Prosessnode5 nm
Transistorer21900 million
Brikkelstørrelse181 mm²
Tetthet121.0 /mm²
GPU-kjernekonfigurasjon
Kjerner4608
TMU-er144
ROP-er48
SM-er36
Minne
TeknologiGDDR7
Størrelse8 GB
Buss128 bit
Båndbredde448 GB/s
Hastighet28 Gbps

Klokkehastigheter
Grunnklokke2407 MHz
Boost-klokke2572 MHz
Minneklokke1750 MHz
Strøm
8-pin1
16-pin1
TDP180 w
Anbefalt strømforsyning600 w
Skjermutgang
DisplayPort3 2.1b
HDMI1 2.1b
HDCP2.3
Dimensjoner
Spor2.1 2
Lengde291.9 mm
Høyde116.5 mm
Bredde41.3 mm

Models

GPU▲	Boost-klokke▲	Spor▲	Lengde▲	Høyde▲	Bredde▲
Zotac GeForce RTX 5060 Ti Twin Edge OC White Edition ZT-B50610Q-10M	2602 MHz +1.2%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Ti Twin Edge ZT-B50610E-10M	2572 MHz	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Ti Twin Edge OC ZT-B50610H-10M	2602 MHz +1.2%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Ti AMP ZT-B50610F-10M	2632 MHz +2.3%	2.1	220.5 mm	120.25 mm	41.6 mm
Asus Dual GeForce RTX 5060 Ti White Edition DUAL-RTX5060TI-8G-WHITE	2572 MHz	2.5	229 mm	120 mm	50 mm
Asus Dual GeForce RTX 5060 Ti White OC Edition DUAL-RTX5060TI-O8G-WHITE	2602 MHz +1.2%	2.5	229 mm	120 mm	50 mm
Asus PRIME GeForce RTX 5060 Ti PRIME/PRIME-RTX5060TI-8G	2752 MHz +7.0%	2.5	304 mm	120 mm	50 mm
Asus Dual GeForce RTX 5060 Ti DUAL-RTX5060TI-8G	2572 MHz	2.5	229 mm	120 mm	50 mm
Asus Dual GeForce RTX 5060 Ti OC Edition DUAL-RTX5060TI-O8G	2602 MHz +1.2%	2.5	229 mm	120 mm	50 mm
Asus TUF Gaming GeForce RTX 5060 Ti TUF-RTX5060TI-8G-GAMING	2572 MHz	3.1	302 mm	133.5 mm	62 mm
Asus TUF Gaming GeForce RTX 5060 Ti OC Edition TUF-RTX5060TI-O8G-GAMING	2662 MHz +3.5%	3.1	302 mm	133.5 mm	62 mm
Asus PRIME GeForce RTX 5060 Ti OC Edition PRIME-RTX5060TI-O8	2617 MHz +1.7%	2.5	304 mm	120 mm	50 mm
Gigabyte GeForce RTX 5060 Ti GAMING OC GV-N506TGAMING OC-8GD	2647 MHz +2.9%	2	281 mm	119 mm	40 mm
Gigabyte GeForce RTX 5060 Ti GAMING GV-N506TGAMING-8GD	2572 MHz	2	281 mm	119 mm	40 mm
Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE GV-N506TEAGLEOC ICE-8GD	2617 MHz +1.7%	2	215 mm	122 mm	40 mm
Gigabyte GeForce RTX 5060 Ti EAGLE MAX OC GV-N506TEAGLEMAX OC-8GD	2617 MHz +1.7%	2	281 mm	115 mm	40 mm
Gigabyte GeForce RTX 5060 Ti EAGLE OC GV-N506TEAGLE OC-8GD	2617 MHz +1.7%	2	215 mm	122 mm	40 mm
Gigabyte GeForce RTX 5060 Ti AERO OC GV-N506TAERO OC-8GD	2647 MHz +2.9%	2	281 mm	117 mm	40 mm
Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX OC GV-N506TWF2MAX OC-8GD	2587 MHz +0.6%	2	208 mm	120 mm	40 mm
Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX GV-N506TWF2MAX-8GD	2572 MHz	2	208 mm	120 mm	40 mm
Gigabyte GeForce RTX 5060 Ti WINDFORCE OC GV-N506TWF2OC-8GD	2587 MHz +0.6%	2	208 mm	120 mm	40 mm
Gigabyte GeForce RTX 5060 Ti WINDFORCE GV-N506TWF2-8GD	2572 MHz	2	208 mm	120 mm	40 mm
MSI GeForce RTX 5060 Ti CYCLONE G506T-8C	2572 MHz	2.1	161 mm	125 mm	42 mm
MSI GeForce RTX 5060 Ti CYCLONE OC G506T-8CC	2602 MHz +1.2%	2.1	161 mm	125 mm	42 mm
MSI GeForce RTX 5060 Ti VENTUS 2X WHITE PLUS G506T8V2WP	2572 MHz	2.1	227 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti VENTUS 2X OC WHITE PLUS G506T8V2CWP	2602 MHz +1.2%	2.1	227 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti SHADOW 2X PLUS G506T-8S2P	2572 MHz	2.1	226 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti SHADOW 2X OC PLUS G506T-8S2CP	2602 MHz +1.2%	2.1	226 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti GAMING DUKE 3X G506T-8D3	2572 MHz	2.3	325 mm	121 mm	45 mm
MSI GeForce RTX 5060 Ti GAMING DUKE 3X OC G506T-8D3C	2617 MHz +1.7%	2.3	325 mm	121 mm	45 mm
MSI GeForce RTX 5060 Ti GAMING TRIO G506T-8GT	2572 MHz	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 Ti GAMING TRIO OC G506T-8GTC	2647 MHz +2.9%	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 Ti GAMING TRIO WHITE G506T-8GTW	2572 MHz	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 Ti GAMING TRIO OC WHITE G506T-8GTCW	2647 MHz +2.9%	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 Ti GAMING G506T-8G	2572 MHz	2.6	247 mm	135 mm	51 mm
MSI GeForce RTX 5060 Ti GAMING OC G506T-8GC	2647 MHz +2.9%	2.6	247 mm	135 mm	51 mm
MSI GeForce RTX 5060 Ti INSPIRE 2X G506T-8I2	2572 MHz	2.5	204 mm	117 mm	50 mm
MSI GeForce RTX 5060 Ti INSPIRE 2X OC G506T-8I2C	2617 MHz +1.7%	2.5	204 mm	117 mm	50 mm
MSI GeForce RTX 5060 Ti VENTUS 3X G506T-8V3	2572 MHz	2.2	304 mm	121 mm	44 mm
MSI GeForce RTX 5060 Ti VENTUS 3X OC G506T-8V3C	2602 MHz +1.2%	2.2	304 mm	121 mm	44 mm
MSI GeForce RTX 5060 Ti VENTUS 2X PLUS G506T-8V2P	2572 MHz	2.1	227 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti VENTUS 2X OC PLUS G506T-8V2CP	2602 MHz +1.2%	2.1	227 mm	126 mm	41 mm
Palit GeForce RTX 5060 Ti White OC NE7506TU19P1-GB2062M	2602 MHz +1.2%	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5060 Ti Dual NE7506T019P1-GB2062D	2572 MHz	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5060 Ti Dual OC NE7506TT19P1-GB2062D	2632 MHz +2.3%	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5060 Ti Infinity 3 OC NE7506TS19P1-GB2062S	2662 MHz +3.5%	2.1	291.9 mm	116.6 mm	41.3 mm
Palit GeForce RTX 5060 Ti Infinity 3 NE7506T019P1-GB2062S	2572 MHz	2.1	291.9 mm	116.6 mm	41.3 mm
PNY GeForce RTX 5060 Ti EPIC-X RGB Overclocked Triple Fan VCG5060T8TFXXPB1-O	2692 MHz +4.7%	2	299 mm	120 mm	40 mm
PNY GeForce RTX 5060 Ti EPIC-X RGB Triple Fan VCG5060T8TFXXPB1	2572 MHz	2	299 mm	120 mm	40 mm
PNY GeForce RTX 5060 Ti Overclocked Dual Fan VCG5060T8DFXPB1-O	2692 MHz +4.7%	2	245.1 mm	120 mm	40 mm
PNY GeForce RTX 5060 Ti Dual Fan VCG5060T8DFXPB1	2572 MHz	2	245.1 mm	120 mm	40 mm
Gainward GeForce RTX 5060 Ti Ghost NE7506T019P1-GB2062B	2572 MHz	2	262.1 mm	126.3 mm	40.1 mm
Gainward GeForce RTX 5060 Ti Ghost 8GB OC NE7506TT19P1-GB2062B	2632 MHz +2.3%	2	262.1 mm	126.3 mm	40.1 mm
Gainward GeForce RTX 5060 Ti Python III NE7506T019P1-GB2062T	2572 MHz	2.1	291.9 mm	116.5 mm	41.3 mm
Gainward GeForce RTX 5060 Ti Python III OC NE7506TS19P1-GB2062T	2662 MHz +3.5%	4.1	291.9 mm	116.5 mm	41.3 mm
