Name: MSI GeForce RTX 5070 Ti GAMING TRIO OC
Brand: MSI
SKU: G507T-16GTC

MSI GeForce RTX 5070 Ti GAMING TRIO OC

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

GPUs > NVIDIA RTX 5070 Ti > MSI GeForce RTX 5070 Ti GAMING TRIO OC

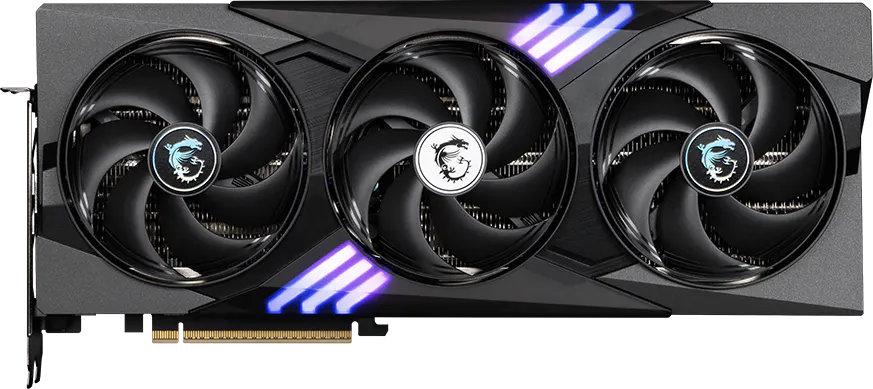

MSI GeForce RTX 5070 Ti GAMING TRIO OC - Front

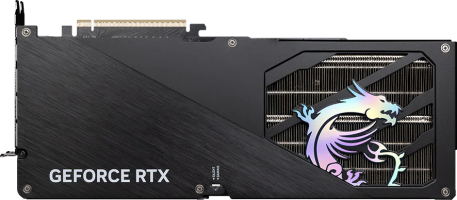

MSI GeForce RTX 5070 Ti GAMING TRIO OC - Rear

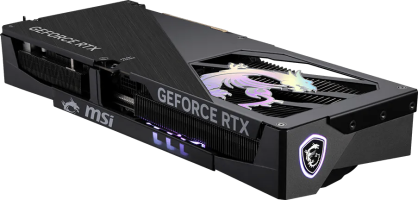

MSI GeForce RTX 5070 Ti GAMING TRIO OC - Side

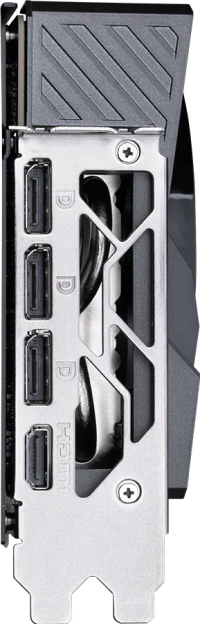

MSI GeForce RTX 5070 Ti GAMING TRIO OC - Outputs

MSI GeForce RTX 5070 Ti GAMING TRIO OC
G507T-16GTC
Fearless and bold, GAMING TRIO delivers strong performance to both gaming and content creation. It blends a fierce look with advanced cooling technologies, making it an unwavering ally on the gaming battlefield. GAMING TRIO is the ideal choice for gamers who strive to give their all.

Informasjon
PlattformConsumer
ArkitekturBlackwell 2nd-gen
GenerasjonGeForce RTX 50
Forrige generasjonGeForce RTX 40
GB203
GrensesnittPCIe 5.0 x16
Maks temperatur88 C
Kjerne
NavnGB203
FabrikantTSMC
Prosessnode5 nm
Transistorer45600 million
Brikkelstørrelse378 mm²
Tetthet120.6 /mm²
GPU-kjernekonfigurasjon
Kjerner8960
TMU-er280
ROP-er96
SM-er70
RT-kjerner70
Minne
TeknologiGDDR7
Størrelse16 GB
Buss256 bit
Båndbredde896 GB/s
Hastighet28 Gbps

Klokkehastigheter
Grunnklokke2295 MHz
Boost-klokke2572 MHz 2452 MHz
Minneklokke1750 MHz
Strøm
16-pin1
TDP300 w
Anbefalt strømforsyning750 w
Skjermutgang
DisplayPort3 2.1b
HDMI1 2.1b
HDCP2.3
Dimensjoner
Spor2.5
Lengde338 mm
Høyde140 mm
Bredde50 mm
Vekt1296 g

Models

GPU▲	Boost-klokke▲	Spor▲	Lengde▲	Høyde▲	Bredde▲
Asus ROG Strix GeForce RTX 5070 Ti ROG-STRIX-RTX5070TI-16G-GAMING	2452 MHz	3.2	332 mm	147.3 mm	64 mm
Asus ROG Strix GeForce RTX 5070 Ti OC Edition ROG-STRIX-RTX5070TI-O16G-GAMING	2602 MHz +6.1%	3.2	332 mm	147.3 mm	64 mm
Zotac GeForce RTX 5070 Ti AMP Extreme INFINITY ULTRA ZT-B50710BU-10P	2572 MHz +4.9%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GeForce RTX 5070 Ti AMP Extreme INFINITY ZT-B50710B-10P	2512 MHz +2.4%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GeForce RTX 5070 Ti SOLID OC ZT-B50710J-10P	2482 MHz +1.2%	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5070 Ti SOLID ZT-B50710D-10P	2452 MHz	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5070 Ti SOLID CORE OC White Edition ZT-B50710Q2-10P	2482 MHz +1.2%	2.8	303.5 mm	115.8 mm	55.7 mm
Zotac GeForce RTX 5070 Ti SOLID CORE OC ZT-B50710J2-10P	2482 MHz +1.2%	2.8	303.5 mm	115.8 mm	55.7 mm
Zotac GeForce RTX 5070 Ti SOLID CORE ZT-B50710D2-10P	2452 MHz	2.8	303.5 mm	115.8 mm	55.7 mm
Zotac GeForce RTX 5070 Ti SOLID SFF OC ZT-B50710J3-10A	2482 MHz +1.2%	2.1	304.4 mm	115.8 mm	41.6 mm
Zotac GeForce RTX 5070 Ti SOLID SFF ZT-B50710D3-10P	2452 MHz	2.1	304.4 mm	115.8 mm	41.6 mm
Gigabyte AORUS GeForce RTX 5070 Ti MASTER GV-N507TAORUS M-16GD	2670 MHz +8.9%	3.8	360 mm	150 mm	75 mm
Gigabyte GeForce RTX 5070 Ti GAMING OC GV-N507TGAMING OC-16GD	2588 MHz +5.5%	3.5	342 mm	142 mm	70 mm
Gigabyte GeForce RTX 5070 Ti GAMING GV-N507TGAMING-16GD	2452 MHz	3.5	342 mm	142 mm	70 mm
Gigabyte GeForce RTX 5070 Ti EAGLE OC ICE SFF GV-N507TEAGLEOC ICE-16GD	2542 MHz +3.7%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti EAGLE OC SFF GV-N507TEAGLE OC-16GD	2542 MHz +3.7%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti EAGLE SFF GV-N507TEAGLE-16GD	2452 MHz	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti AERO OC GV-N507TAERO OC-16GD	2588 MHz +5.5%	3.5	342 mm	140 mm	70 mm
Gigabyte GeForce RTX 5070 Ti WINDFORCE OC V2 GV-N507TWF3OCV2-16GD	2497 MHz +1.8%	2.5	261 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF GV-N507TWF3OC-16GD	2497 MHz +1.8%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti WINDFORCE SFF GV-N507TWF3-16GD	2452 MHz	2.5	304 mm	126 mm	50 mm
Asus ProArt GeForce RTX 5070 Ti PROART-RTX5070TI-16G	2452 MHz	2.5	304 mm	126 mm	50 mm
Asus ProArt GeForce RTX 5070 Ti OC Edition PROART-RTX5070TI-O16G	2588 MHz +5.5%	2.5	304 mm	126 mm	50 mm
Asus TUF Gaming GeForce RTX 5070 Ti BTF White OC Edition TUF-RTX5070TI-O16G-BTF-WHITE	2588 MHz +5.5%	3.2	329 mm	140 mm	62.5 mm
Asus TUF Gaming GeForce RTX 5070 Ti BTF White Edition TUF-RTX5070TI-16G-BTF-WHITE	2452 MHz	3.2	329 mm	140 mm	62.5 mm
Asus TUF Gaming GeForce RTX 5070 Ti White OC Edition TUF-RTX5070TI-O16G-WHITE-GAMING	2588 MHz +5.5%	3.2	329 mm	140 mm	62.5 mm
Asus PRIME GeForce RTX 5070 Ti PRIME-RTX5070TI-16G	2452 MHz	2.5	304 mm	126 mm	50 mm
Asus PRIME GeForce RTX 5070 Ti OC Edition PRIME-RTX5070TI-O16G	2497 MHz +1.8%	2.5	304 mm	126 mm	50 mm
Asus TUF Gaming GeForce RTX 5070 Ti TUF-RTX5070TI-16G-GAMING	2452 MHz	3.2	329 mm	140 mm	62.5 mm
Asus TUF Gaming GeForce RTX 5070 Ti OC Edition TUF-RTX5070TI-O16G-GAMING	2588 MHz +5.5%	3.2	329 mm	140 mm	62.5 mm
MSI GeForce RTX 5070 Ti FRIEREN EDITION OC G507T-16FEC	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti VENTUS 3X PZ G507T-16V3Z	2452 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti VENTUS 3X PZ OC G507T-16V3ZC	2482 MHz +1.2%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti MLG EDITION G507T-16ME	2452 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti MLG EDITION OC G507T-16MEC	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti EXPERT G507T-16E	2452 MHz	3	319 mm	150 mm	60 mm
MSI GeForce RTX 5070 Ti EXPERT OC G507T-16EC	2580 MHz +5.2%	3	319 mm	150 mm	60 mm
MSI GeForce RTX 5070 Ti INSPIRE 3X G507T-16I3	2452 MHz	2.5	288 mm	122 mm	50 mm
MSI GeForce RTX 5070 Ti INSPIRE 3X OC G507T-16I3C	2482 MHz +1.2%	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO G507T-16GT	2452 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO OC G507T-16GTC	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO WHITE G507T-16GTW	2452 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO OC WHITE G507T-16GTCW	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO PLUS G507T-16GTP	2452 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO OC PLUS G507T-16GTCP	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti SHADOW 3X G507T-16S3	2452 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti SHADOW 3X OC G507T-16S3C	2482 MHz +1.2%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti VANGUARD SOC LAUNCH EDITION G507T-16VGSL	2588 MHz +5.5%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5070 Ti VANGUARD SOC G507T-16VGS	2588 MHz +5.5%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5070 Ti VANGUARD OC G507T-16VGC	2572 MHz +4.9%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5070 Ti VENTUS 3X G507T-16V3	2452 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti VENTUS 3X OC G507T-16V3C	2482 MHz +1.2%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti INSPIRE 3X PLUS G507T-16I3P	2452 MHz	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5070 Ti INSPIRE 3X OC PLUS G507T-16I3CP	2482 MHz +1.2%	2.5	288 mm	112 mm	50 mm
Palit GeForce RTX 5070 Ti GamingPro-S NE7507T019T2-GB2031U	2452 MHz	2.5	331.9 mm	127.1 mm	49.7 mm
Palit GeForce RTX 5070 Ti GamingPro-S OC NE7507TS19T2-GB2031U	2482 MHz +1.2%	2.5	331.9 mm	127.1 mm	49.7 mm
Palit GeForce RTX 5070 Ti GamingPro V1 NE7507T019T2-GB2031Y	2452 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 Ti GamingPro OC V1 NE7507TS19T2-GB2031Y	2482 MHz +1.2%	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 Ti GamingPro NE7507T019T2-GB2031A	2452 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 Ti GamingPro OC NE7507TS19T2-GB2031A	2482 MHz +1.2%	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 Ti GameRock NE7507T019T2-GB2030G	2452 MHz	3.6	331.9 mm	150 mm	70.4 mm
Palit GeForce RTX 5070 Ti GameRock OC NE7507TH19T2-GB2030G	2512 MHz +2.4%	3.6	331.9 mm	160 mm	70.4 mm
PNY GeForce RTX 5070 Ti Triple Fan Plus VCG5071T16TFXPB1	2452 MHz	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5070 Ti Overclocked Triple Fan Plus VCG5071T16TFXPB1-O	2572 MHz +4.9%	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5070 Ti EPIC-X RGB Triple Fan Plus VCG5071T16TFXXPB1	2452 MHz	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5070 Ti EPIC-X RGB Overclocked Triple Fan Plus VCG5071T16TFXXPB1-O	2640 MHz +7.7%	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5070 Ti Slim Dual Fan Overclocked VCG5070T16DFSXPB1-O	2572 MHz +4.9%	2	290 mm	150 mm	40 mm
PNY GeForce RTX 5070 Ti Slim Dual Fan VCG5070T16DFSXPB1	2452 MHz	2	290 mm	150 mm	40 mm
Gainward GeForce RTX 5070 Ti Phoenix-S NE7507T019T2-GB2031K	2452 MHz	2.5	331.9 mm	127.1 mm	49.4 mm
Gainward GeForce RTX 5070 Ti Phoenix-S GS NE7507TS19T2-GB2031K	2482 MHz +1.2%	2.5	331.9 mm	127.1 mm	49.4 mm
Gainward GeForce RTX 5070 Ti Phoenix V1 NE7507T019T2-GB2031C	2452 MHz	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5070 Ti Phoenix NE7507T019T2-GB2031X	2452 MHz	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5070 Ti Phoenix GS NE7507TS19T2-GB2031X	2482 MHz +1.2%	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5070 Ti Phoenix GS V1 NE7507TS19T2-GB2031C	2482 MHz +1.2%	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5070 Ti Phantom NE7507T019T2-GB2030P	2452 MHz	3.5	331.9 mm	145.6 mm	69.9 mm
Gainward GeForce RTX 5070 Ti Phantom GS NE7507TH19T2-GB2030P	2512 MHz +2.4%	3.5	331.9 mm	145.6 mm	69.9 mm
PNY PNY GeForce RTX 5070 Ti Overclocked Triple Fan VCG5070T16TFXPB1-O	2572 MHz +4.9%	3	299.7 mm	120.1 mm	59.7 mm
PNY GeForce RTX 5070 Ti Triple Fan VCG5070T16TFXPB1	2450 MHz -0.1%	3	299.7 mm	120.1 mm	59.7 mm

Informasjon
Plattform	Consumer
Arkitektur	Blackwell 2nd-gen
Generasjon	GeForce RTX 50
Forrige generasjon	GeForce RTX 40
	GB203
Grensesnitt	PCIe 5.0 x16
Maks temperatur	88 C

Kjerne
Navn	GB203
Fabrikant	TSMC
Prosessnode	5 nm
Transistorer	45600 million
Brikkelstørrelse	378 mm²
Tetthet	120.6 /mm²

Minne
Teknologi	GDDR7
Størrelse	16 GB
Buss	256 bit
Båndbredde	896 GB/s
Hastighet	28 Gbps

Klokkehastigheter
Grunnklokke	2295 MHz
Boost-klokke	2572 MHz 2452 MHz
Minneklokke	1750 MHz

GPU-kjernekonfigurasjon
Kjerner	8960
TMU-er	280
ROP-er	96
SM-er	70
RT-kjerner	70

Strøm
16-pin	1
TDP	300 w
Anbefalt strømforsyning	750 w

Skjermutgang
DisplayPort	3 2.1b
HDMI	1 2.1b
HDCP	2.3

Dimensjoner
Spor	2.5
Lengde	338 mm
Høyde	140 mm
Bredde	50 mm
Vekt	1296 g
