Name: ASRock Radeon RX 9070 XT Monster Hunter Wilds Edition
Brand: ASRock
SKU: RX9070XT MH 16G

GPUs

AMD RX 9070 XT

ASRock Radeon RX 9070 XT Monster Hunter Wilds Edition

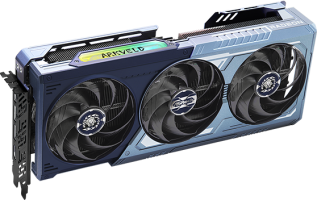

ASRock Radeon RX 9070 XT Monster Hunter Wilds Edition - Side

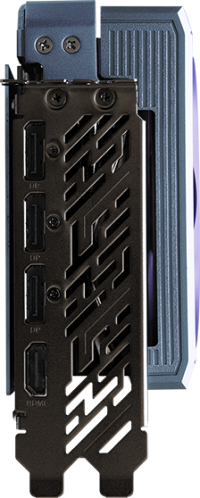

ASRock Radeon RX 9070 XT Monster Hunter Wilds Edition - Outputs

AMD RX 9070 XT
ASRock Radeon RX 9070 XT Monster Hunter Wilds Edition
RX9070XT MH 16G
Spesifikasjoner
Modeller
Ingen anmeldelser ennå. Bli den første til å dele dine tanker!
 Logg inn for å skrive en anmeldelse.

Spesifikasjoner

Informasjon
PlattformConsumer
ArkitekturRDNA4
GenerasjonRX 9000
Forrige generasjonRX 7000
GrensesnittPCIe 5.0 x16
Kjerne
NavnNavi 48
FabrikantTSMC
Prosessnode4 nm
Transistorer53900 million
Brikkestørrelse357.0 mm²
Tetthet151.0 /mm²
GPU-kjernekonfigurasjon
Kjerner4096
TMU256
ROP128
Minne
TeknologiGDDR6
Størrelse16 GB
Buss256 bit
Infinity Cache64 MB
Båndbredde644.6 GB/s
Hastighet20.1 Gbps

Klokkehastigheter
Grunnklokke1660 MHz
Spillklokke2400 MHz
Boost-klokke2970 MHz
Minneklokke2518 MHz
Strøm
8-pin2
TDP304 w
Anbefalt strømforsyning800 w 750 w
Skjermutgang
DisplayPort3 2.1a
HDMI1 2.1b
HDCP2.3
Dimensjoner
Spor2.9
Lengde298 mm
Høyde131 mm
Bredde58 mm
Weight1155 g

Modeller

Skjermkort▲	Pris▲	Boost-klokke▲	Spor▲	Lengde▲	Høyde▲	Bredde▲
ASRock Radeon RX 9070 XT Taichi White OC RX9070XT TCW 16GO		3100 MHz +4.4%	3	330 mm	146 mm	61 mm
ASRock Radeon RX 9070 XT Taichi OC RX9070XT TC 16GO	11 240,-	3100 MHz +4.4%	3	330 mm	140 mm	61 mm
ASRock Radeon RX 9070 XT Steel Legend RX9070XT SL 16G	9 773,-	2970 MHz	2.9	298 mm	131 mm	58 mm
ASRock Radeon RX 9070 XT Monster Hunter Wilds Edition RX9070XT MH 16G		2970 MHz	2.9	298 mm	131 mm	58 mm
ASRock Radeon RX 9070 XT Steel Legend Dark RX9070XT SLD 16G	9 773,-	2970 MHz	2.9	298 mm	131 mm	58 mm
ASRock Radeon RX 9070 XT Challenger RX9070XT CL 16G	9 301,-	2970 MHz	2.8	290 mm	123 mm	56 mm
Asus TUF Gaming Radeon RX 9070 XT COD BO7 Special Edition TUF-RX9070XT-O16G-COD-BO7		3060 MHz +3.0%	3.2	330 mm	140 mm	62.5 mm
Asus Prime Radeon RX 9070 XT White OC Edition PRIME-RX9070XT-O16G-WHITE	9 937,-	3010 MHz +1.3%	2.5	312 mm	130 mm	50 mm
Asus TUF Gaming Radeon RX 9070 XT OC Edition TUF-RX9070XT-O16G-GAMING	9 490,-	3060 MHz +3.0%	3.2	330 mm	140 mm	62.5 mm
Asus Prime Radeon RX 9070 XT OC Edition PRIME-RX9070XT-O16G	7 990,-	3010 MHz +1.3%	2.5	312 mm	130 mm	50 mm
Gigabyte Radeon RX 9070 XT GAMING GV-R9070XTGAMING-16GD		2970 MHz	2.8	288 mm	132 mm	56 mm
Gigabyte Radeon RX 9070 XT GAMING OC GV-R9070XTGAMING OC-16GD	9 499,-	3060 MHz +3.0%	2.8	288 mm	132 mm	56 mm
Gigabyte Radeon RX 9070 XT GAMING OC ICE GV-R907XGAMINGOCICE-16GD	9 690,-	3060 MHz +3.0%	2.8	288 mm	132 mm	56 mm
Gigabyte AORUS Radeon RX 9070 XT ELITE GV-R9070XTAORUS E-16GD	10 214,-	3100 MHz +4.4%	3	339 mm	136 mm	59 mm
PowerColor Hellhound AMD Radeon RX 9070 XT Reva Edition RX9070XT 16G-L/OC/REVA	12 390,-	3010 MHz +1.3%	2.9	332 mm	122 mm	57 mm
PowerColor Red Devil AMD Radeon RX 9070 XT Backplate Special Edition RX9070XT 16G-E/OC/BP		3060 MHz +3.0%	3	340 mm	132 mm	69 mm
PowerColor Red Devil Spectral White AMD Radeon RX 9070 XT RX9070XT 16G-E/OC/WHITE	11 290,-	3060 MHz +3.0%	3.5	340 mm	132 mm	69 mm
PowerColor Red Devil AMD Radeon RX 9070 XT Limited Edition RX9070XT 16G-E/OC/LIMITED		3060 MHz +3.0%	3.5	340 mm	132 mm	69 mm
PowerColor Red Devil AMD Radeon RX 9070 XT RX9070XT 16G-E/OC	10 890,-	3060 MHz +3.0%	3.5	340 mm	132 mm	69 mm
PowerColor Hellhound Spectral White AMD Radeon RX 9070 XT RX9070XT 16G-L/OC/WHITE	10 290,-	3010 MHz +1.3%	2.5	327 mm	128 mm	49 mm
PowerColor Hellhound AMD Radeon RX 9070 XT RX9070XT 16G-L/OC	10 290,-	3010 MHz +1.3%	2.5	327 mm	128 mm	49 mm
PowerColor Reaper AMD Radeon RX 9070 XT RX9070XT 16G-A	8 590,- 9 290,-	2970 MHz	2.1	289 mm	111 mm	41 mm
Sapphire PURE AMD Radeon RX 9070 XT OC 11348-02-20G	9 987,-	3010 MHz +1.3%	3.1	320 mm	120.3 mm	61.6 mm
Sapphire NITRO+ AMD Radeon RX 9070 XT OC Crimson Desert Edition 11348-10-20G	12 141,-	3060 MHz +3.0%	3.3	330.8 mm	128.5 mm	65.7 mm
Sapphire NITRO+ AMD Radeon RX 9070 XT OC 11348-01-20G	10 990,-	3060 MHz +3.0%	3.3	330.8 mm	128.5 mm	66 mm
Sapphire PULSE AMD Radeon RX 9070 XT 11348-03-20G	8 549,- 9 987,-	2970 MHz	3.1	320 mm	120.3 mm	61.6 mm
XFX Mercury AMD Radeon RX 9070XT OC White Magnetic Air Edition with RGB RX-97TMARGW9	10 655,-	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT OC Magnetic Air Edition with RGB RX-97TMARGBA		3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT OC Gaming Edition with RGB RX-97TRGBBB9	9 775,-	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT OC White Gaming Edition with RGB RX-97TRGBBW9	9 734,-	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT OC Gaming Edition with RGB RX-97TRGBBBA		3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT Gaming Edition RX-97TMERCB9		2970 MHz	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT Gaming Edition RX-97TMERCBA		2970 MHz	7.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT White Gaming Edition RX-97TMERCWA		2970 MHz	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT OC Magnetic Air Edition with RGB RX-97TMARGB9	10 790,-	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Quicksilver AMD Radeon RX 9070XT Magnetic Air Edition RX-97TMAQKB9	10 486,-	2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070XT White Magnetic Air Edition RX-97TMAQKW9		2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070XT Gaming Edition RX-97TQICKB9		2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070XT White Gaming Edition RX-97TQICKW9	10 055,-	2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070 XT Gaming Edition RX-97TQICKBA		2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Swift AMD Radeon RX 9070XT Triple Fan Gaming Edition RX-97TSWF3B9	9 726,-	2970 MHz	3.3	325 mm	150 mm	65 mm
XFX Swift AMD Radeon RX 9070XT White Triple Fan Gaming Edition RX-97TSWF3W9	9 890,-	2970 MHz	3.3	325 mm	150 mm	65 mm
XFX Swift AMD Radeon RX 9070 XT Triple Fan Gaming Edition RX-97TSWF3BA		2970 MHz	3.3	325 mm	150 mm	65 mm
Acer Radeon RX 9070 XT Nitro OC DP.Z4DWW.P01		3100 MHz +4.4%	2.5	295 mm
Sapphire NITRO+ AMD Radeon RX 9070 XT OC PhantomLink Edition 11348-08-20G	11 291,-	3060 MHz +3.0%	3.3	330.8 mm	141.3 mm	65.7 mm
Sapphire NITRO+ AMD Radeon RX 9070 XT OC PhantomLink Polar Edition 11348-09-20G		3060 MHz +3.0%	3.3	330.8 mm	141.8 mm	65.7 mm
Acer PREDATOR BiFrost Radeon RX 9070 XT OC		2970 MHz
Acer Radeon RX 9070 XT Predator Bifrost White Edition DP.Z4FWW.P02	9 490,-	2970 MHz

Plattform	Consumer
Arkitektur	RDNA4
Generasjon	RX 9000
Forrige generasjon	RX 7000
Grensesnitt	PCIe 5.0 x16

Navn	Navi 48
Fabrikant	TSMC
Prosessnode	4 nm
Transistorer	53900 million
Brikkestørrelse	357.0 mm²
Tetthet	151.0 /mm²

Teknologi	GDDR6
Størrelse	16 GB
Buss	256 bit
Infinity Cache	64 MB
Båndbredde	644.6 GB/s
Hastighet	20.1 Gbps

Grunnklokke	1660 MHz
Spillklokke	2400 MHz
Boost-klokke	2970 MHz
Minneklokke	2518 MHz

Kjerner	4096
TMU	256
ROP	128

8-pin	2
TDP	304 w
Anbefalt strømforsyning	800 w 750 w

DisplayPort	3 2.1a
HDMI	1 2.1b
HDCP	2.3

Spor	2.9
Lengde	298 mm
Høyde	131 mm
Bredde	58 mm
Weight	1155 g
