Name: Asus Prime Radeon RX 9070 XT White OC Edition
Brand: Asus
SKU: PRIME-RX9070XT-O16G-WHITE

Asus Prime Radeon RX 9070 XT White OC Edition

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

GPUs > AMD RX 9070 XT > Asus Prime Radeon RX 9070 XT White OC Edition

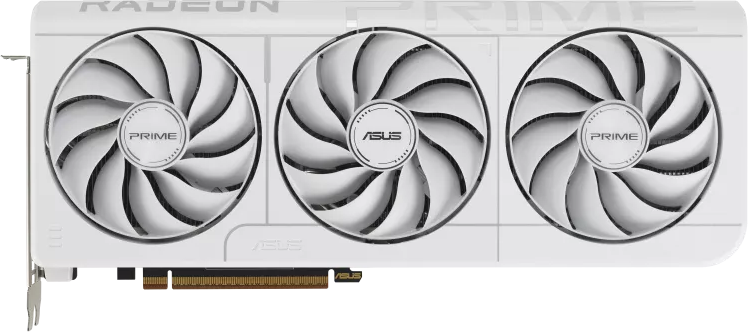

Asus Prime Radeon RX 9070 XT White OC Edition - Front

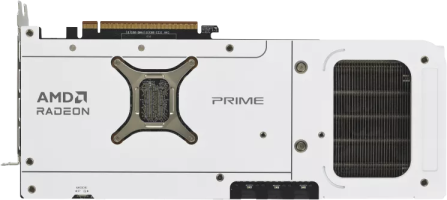

Asus Prime Radeon RX 9070 XT White OC Edition - Rear

Asus Prime Radeon RX 9070 XT White OC Edition - Side

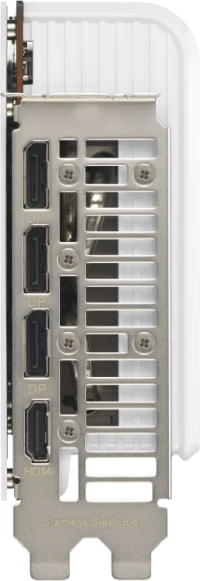

Asus Prime Radeon RX 9070 XT White OC Edition - Outputs

Asus Prime Radeon RX 9070 XT White OC Edition
PRIME-RX9070XT-O16G-WHITE
Experience Primal performance with the Prime Radeon™ RX 9070 XT White Edition graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a phase-change GPU thermal pad and a triple-fan setup for supreme cooling.

Informasjon
PlattformConsumer
ArkitekturRDNA4
GenerasjonRX 9000
Forrige generasjonRX 7000
GrensesnittPCIe 5.0 x16
Kjerne
NavnNavi 48
FabrikantTSMC
Prosessnode4 nm
Transistorer53900 million
Brikkelstørrelse357 mm²
Tetthet151.0 /mm²
GPU-kjernekonfigurasjon
Kjerner4096
TMU-er256
ROP-er128
Minne
TeknologiGDDR6
Størrelse16 GB
Buss256 bit
Infinity Cache64 MB
Båndbredde644.608 GB/s
Hastighet20.144 Gbps

Klokkehastigheter
Grunnklokke1660 MHz
Spillklokke2460 MHz 2400 MHz
Boost-klokke3010 MHz 2970 MHz
Minneklokke2518 MHz
Strøm
8-pin3
TDP304 w
Anbefalt strømforsyning750 w
Skjermutgang
DisplayPort3 2.1a
HDMI1 2.1b
HDCP2.3
Dimensjoner
Spor2.5
Lengde312 mm
Høyde130 mm
Bredde50 mm

Models

GPU▲	Boost-klokke▲	Spor▲	Lengde▲	Høyde▲	Bredde▲
ASRock Radeon RX 9070 XT Taichi White OC RX9070XT TCW 16GO	3100 MHz +4.4%	3	330 mm	146 mm	61 mm
ASRock Radeon RX 9070 XT Taichi OC RX9070XT TC 16GO	3100 MHz +4.4%	3	330 mm	140 mm	61 mm
ASRock Radeon RX 9070 XT Steel Legend RX9070XT SL 16G	2970 MHz	2.9	298 mm	131 mm	58 mm
ASRock Radeon RX 9070 XT Monster Hunter Wilds Edition RX9070XT MH 16G	2970 MHz	2.9	298 mm	131 mm	58 mm
ASRock Radeon RX 9070 XT Steel Legend Dark RX9070XT SLD 16G	2970 MHz	2.9	298 mm	131 mm	58 mm
ASRock Radeon RX 9070 XT Challenger RX9070XT CL 16G	2970 MHz	2.8	290 mm	123 mm	56 mm
Asus TUF Gaming Radeon RX 9070 XT COD BO7 Special Edition TUF-RX9070XT-O16G-COD-BO7	3060 MHz +3.0%	3.2	330 mm	140 mm	62.5 mm
Asus Prime Radeon RX 9070 XT White OC Edition PRIME-RX9070XT-O16G-WHITE	3010 MHz +1.3%	2.5	312 mm	130 mm	50 mm
Asus TUF Gaming Radeon RX 9070 XT OC Edition TUF-RX9070XT-O16G-GAMING	3060 MHz +3.0%	3.2	330 mm	140 mm	62.5 mm
Asus Prime Radeon RX 9070 XT OC Edition PRIME-RX9070XT-O16G	3010 MHz +1.3%	2.5	312 mm	130 mm	50 mm
Gigabyte Radeon RX 9070 XT GAMING GV-R9070XTGAMING-16GD	2970 MHz	2.8	288 mm	132 mm	56 mm
Gigabyte Radeon RX 9070 XT GAMING OC GV-R9070XTGAMING OC-16GD	3060 MHz +3.0%	2.8	288 mm	132 mm	56 mm
Gigabyte Radeon RX 9070 XT GAMING OC ICE GV-R907XGAMINGOCICE-16GD	3060 MHz +3.0%	2.8	288 mm	132 mm	56 mm
Gigabyte AORUS Radeon RX 9070 XT ELITE GV-R9070XTAORUS E-16GD	3100 MHz +4.4%	3	339 mm	136 mm	59 mm
PowerColor Hellhound AMD Radeon RX 9070 XT Reva Edition RX9070XT 16G-L/OC/REVA	3010 MHz +1.3%	2.9	332 mm	122 mm	57 mm
PowerColor Red Devil AMD Radeon RX 9070 XT Backplate Special Edition RX9070XT 16G-E/OC/BP	3060 MHz +3.0%	3	340 mm	132 mm	69 mm
PowerColor Red Devil Spectral White AMD Radeon RX 9070 XT RX9070XT 16G-E/OC/WHITE	3060 MHz +3.0%	3.5	340 mm	132 mm	69 mm
PowerColor Red Devil AMD Radeon RX 9070 XT Limited Edition RX9070XT 16G-E/OC/LIMITED	3060 MHz +3.0%	3.5	340 mm	132 mm	69 mm
PowerColor Red Devil AMD Radeon RX 9070 XT RX9070XT 16G-E/OC	3060 MHz +3.0%	3.5	340 mm	132 mm	69 mm
PowerColor Hellhound Spectral White AMD Radeon RX 9070 XT RX9070XT 16G-L/OC/WHITE	3010 MHz +1.3%	2.5	327 mm	128 mm	49 mm
PowerColor Hellhound AMD Radeon RX 9070 XT RX9070XT 16G-L/OC	3010 MHz +1.3%	2.5	327 mm	128 mm	49 mm
PowerColor Reaper AMD Radeon RX 9070 XT RX9070XT 16G-A	2970 MHz	2.1	289 mm	111 mm	41 mm
Sapphire PURE AMD Radeon RX 9070 XT OC 11348-02-20G	3010 MHz +1.3%	3.1	320 mm	120.3 mm	61.6 mm
Sapphire NITRO+ AMD Radeon RX 9070 XT OC Crimson Desert Edition 11348-10-20G	3060 MHz +3.0%	3.3	330.8 mm	128.5 mm	65.7 mm
Sapphire NITRO+ AMD Radeon RX 9070 XT OC 11348-01-20G	3060 MHz +3.0%	3.3	330.8 mm	128.5 mm	66 mm
Sapphire PULSE AMD Radeon RX 9070 XT 11348-03-20G	2970 MHz	3.1	320 mm	120.3 mm	61.6 mm
XFX Mercury AMD Radeon RX 9070XT OC White Magnetic Air Edition with RGB RX-97TMARGW9	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT OC Magnetic Air Edition with RGB RX-97TMARGBA	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT OC Gaming Edition with RGB RX-97TRGBBB9	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT OC White Gaming Edition with RGB RX-97TRGBBW9	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT OC Gaming Edition with RGB RX-97TRGBBBA	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT Gaming Edition RX-97TMERCB9	2970 MHz	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT Gaming Edition RX-97TMERCBA	2970 MHz	7.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT White Gaming Edition RX-97TMERCWA	2970 MHz	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT OC Magnetic Air Edition with RGB RX-97TMARGB9	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Quicksilver AMD Radeon RX 9070XT Magnetic Air Edition RX-97TMAQKB9	2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070XT White Magnetic Air Edition RX-97TMAQKW9	2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070XT Gaming Edition RX-97TQICKB9	2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070XT White Gaming Edition RX-97TQICKW9	2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070 XT Gaming Edition RX-97TQICKBA	2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Swift AMD Radeon RX 9070XT Triple Fan Gaming Edition RX-97TSWF3B9	2970 MHz	3.3	325 mm	150 mm	65 mm
XFX Swift AMD Radeon RX 9070XT White Triple Fan Gaming Edition RX-97TSWF3W9	2970 MHz	3.3	325 mm	150 mm	65 mm
XFX Swift AMD Radeon RX 9070 XT Triple Fan Gaming Edition RX-97TSWF3BA	2970 MHz	3.3	325 mm	150 mm	65 mm

Informasjon
Plattform	Consumer
Arkitektur	RDNA4
Generasjon	RX 9000
Forrige generasjon	RX 7000
Grensesnitt	PCIe 5.0 x16

Kjerne
Navn	Navi 48
Fabrikant	TSMC
Prosessnode	4 nm
Transistorer	53900 million
Brikkelstørrelse	357 mm²
Tetthet	151.0 /mm²

Minne
Teknologi	GDDR6
Størrelse	16 GB
Buss	256 bit
Infinity Cache	64 MB
Båndbredde	644.608 GB/s
Hastighet	20.144 Gbps

Klokkehastigheter
Grunnklokke	1660 MHz
Spillklokke	2460 MHz 2400 MHz
Boost-klokke	3010 MHz 2970 MHz
Minneklokke	2518 MHz

GPU-kjernekonfigurasjon
Kjerner	4096
TMU-er	256
ROP-er	128

Strøm
8-pin	3
TDP	304 w
Anbefalt strømforsyning	750 w

Skjermutgang
DisplayPort	3 2.1a
HDMI	1 2.1b
HDCP	2.3

Dimensjoner
Spor	2.5
Lengde	312 mm
Høyde	130 mm
Bredde	50 mm
